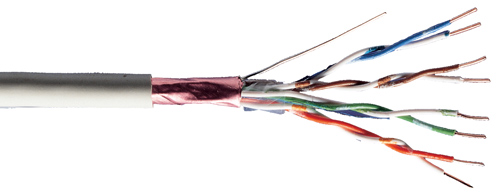

Details: 4x2xAWG24 U-UTP CAT 6 250 MHz patch cable
Suitable for direct assembly of RJ45 plugs for the manufacture of patch cables.
For installation of cable lines of class E , 250 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-6-2Physical description
Please specify the needed length when placing this object into the cart.
Suitable for direct assembly of RJ45 plugs for the manufacture of patch cables.
For installation of cable lines of class E , 250 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-6-2Physical description
- Basic Conductor: stranded AWG 24/7,
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: blue x white, orange x white, green x white, brown x white
- Individual pair shield: none
- Overall shield: none
- Outer jacket: PVC
- Color: grey
- Electrical properties
- Mean impedance: 100±6 Ohm @ 1-250 MHz
- Vp: 67% nom.
- Mutual capacitance: 55,8 nF/km max.
- Capacitance unbalance: 1.6 pF/m max.
- Insulation resistance: 0.5 GOhm * Km min.
- DC loop resistance: 450 Ohm/Km max. (2% max. resistance unbalance)
- Phase delay: 5350 nS/km max.
- Delay skew: 40 nS/100m max.
Please specify the needed length when placing this object into the cart.
